提升机是应用最广泛的一种垂直提升设备,该机适用于中、大块和有磨琢性的物料(如石灰石、水泥熟料、石膏、块煤)的垂直输送,物料温度在250℃以下。
NE型板链斗式提升机是由国外引进先进技术研制的新产品，主要技术参数符合机械部标准(JB3926-85)。采用自流式装料,重力式卸料.链条是优质合金钢高强度板式链条,耐磨而可靠。驱动部分采用硬齿面减速器。NE系列板链式斗式提升机共有11种型号:NE15、NE30、NE50、NE150、 NE200、NE300、NE400、NE500、NE600、NE800。
Product overview
Hoist is the most widely used a vertical lifting equipment, this machine is suitable for medium and large and have cut grinding materials (such as limestone, cement clinker, gypsum and coal) of vertical transportation, the material temperature below 250 ℃.
NE plate chain bucket elevator is a new product developed by the introduction of advanced foreign technology, main technical parameters meet the mechanical standard (JB3926-85).Using the streaming charging, gravity discharge. The chain is high quality alloy high strength plate chain, wear-resisting and reliable.Driving part adopts hard tooth surface gear reducer.NE series plate chain bucket elevator with a total of 11 kinds of models: NE15, NE30, NE50, NE150, NE200, NE300, NE400, NE500, NE600, NE800.
Structures
NE系列板链式斗式提升机由运行部件、驱动装置、上部装置、中部机壳、下部装置组成。
Series of NE plate chain bucket elevator running parts, driving device, the upper device, central casing, the lower unit.

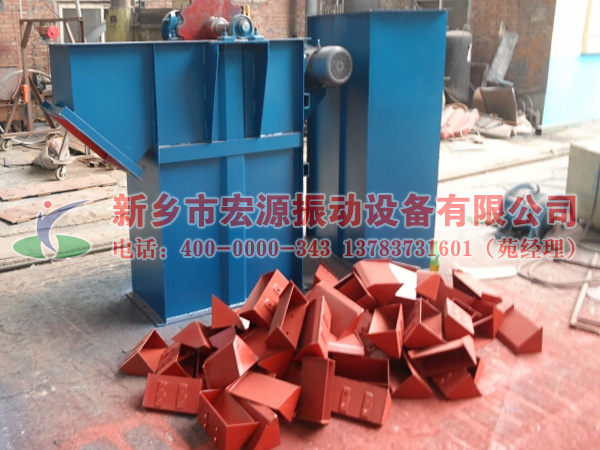

板链斗式提升机机头、箱体、料斗
Head, body, hopper
运行部件---由料斗和专用板式链条组成,NE30以及下采用单排链,NE50--NE800采用双排链。
Run parts - composed of hopper and special plate chain, NE30 and adopt single chain, NE50 - NE800 with double row of chain.

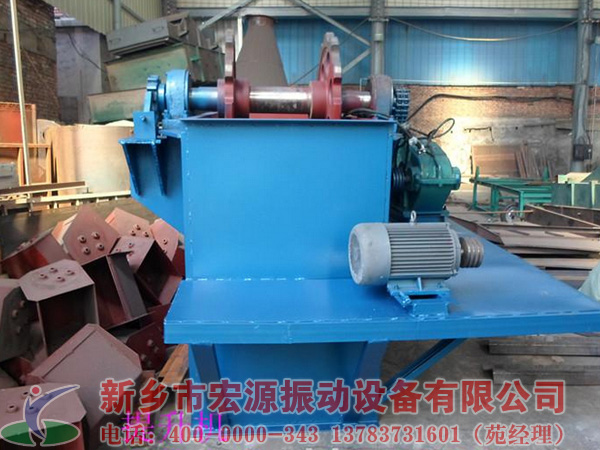

NE50板链斗式提升机，双排链
NE50 - NE800 with double row of chain.

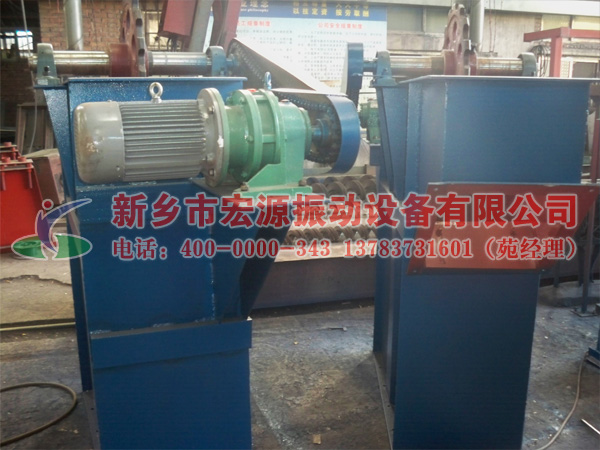

NE30板链斗式提升机，单排链
NE30 plate chain bucket elevator with single chain
驱动装置---采用多种驱动组合驱动,(依用户实际需要而定).驱动平台上装有检修架和栏杆。驱动制装置分左和右装两种。
上部装置---安装有轨道(双排链)、逆止器、卸料口装有防回料橡胶板。
中间节---部分中间节装有轨道(双链),以防止链条工作中摆动。
下部装置---安装有自动张紧装置。
Driving gear drive - driven by a variety of combinations, (according to the user's actual needs). Driving platform equipped with maintenance and rail.Drive device points in both left and right.
The upper device - installed orbit (double row chain), non-return device, discharge outlet is equipped with rubber back.
Middle section - part of the middle section is equipped with orbit (double chain), in order to prevent the chain of oscillation.
The lower device - equipped with automatic tensioning device.
Working site
NE系列板链式斗式提升机本机系流入式喂料，物料流入料斗内靠板链提升到顶端，在物料重力作用下自行卸料。本系列提升机规格多(NE15~NE800共 11种)提升量广；且生产能高，能耗较低，可逐步代替其他类型提升机，其主要参数见下表。该机采用全封式机壳链速低，几乎无回料现象，因此无功功率损耗少，噪声低，寿命长。
NE series plate chain bucket elevator machine is flow into the type of feeding, material flow into the hopper by plate chain ascend to the top, in the material under the action of gravity discharge itself.This series hoist specification (a total of 11 NE15 ~ NE800) more wide lifting capacity;And can produce high, low energy consumption, can gradually take the place of other type hoist, its main parameters, see the table below.This drill adopts full casing chain sealing speed is low, almost no back to the material, so the reactive power loss, low noise, long service life.
1.密封性好，环金污染少。
2.操作、维修方便、易损件少。
3.使用成本低，由于节能和维修少，使用成本极低。
4.运行可靠，先进的设计原理，保证整机运行的可靠性，密封性好。环境污染少。
5.结构港型号，精度高。机壳经折边和中间压筋，再经焊接，刚性好、外观漂亮。
6.机械尺寸小，与同等提升量的其它各种提升机相比，这种提升机的机械尺寸较小。
7.输送能力大，该系列提升机具有NE15～NE800多种规格。提升量范围为15～800m3/h。
8.操作方便，维修少，易损件少。输送链为套筒滚子链，诱导式重力卸料，用于各种粉状、块状物粒的垂直提升。
Features
1. The good sealing and less pollution.
2. Operation, easy maintenance, less wearing parts.
3. The use of low cost, as a result of energy saving and less maintenance, low use cost.
4. Reliable operation, advanced design principle, guarantee the machine running reliability and good sealing.Less environmental pollution.
5. Port type structure, high precision.Casing by folding and intermediate embossing, then through welding, good rigidity, beautiful appearance.
6. Mechanical size is small, compared with the same lifting capacity of other kinds of hoist, this elevator mechanical size is smaller.
7. Large conveying capacity, this series of machines have a variety of specifications NE15 ~ NE800 ascension.Lifting capacity range of 15-800 m3 / h.
8. Easy operation, less maintenance, less wearing parts.Roller chain conveyor chain for socket, induction gravity discharge, used for all kinds of powder, lumps of vertical ascent.
1.上部装置：安装有轨道（双排道），防止链条摆动，逆止器，防止料斗回转，物料阻满下部机壳，卸料口装有橡胶板防止回料。
2.中间节：部分中间节装有轨道（双排节），以防止链条工作中摆动，部分中间节装有检修门以便维修。
3.下部装置：安装有张紧装置， NE15~NE50采用弹簧张紧，NE100~NE800采用重锤箱张紧。
4.上下链轮采用 ZG310-570。整体调质，HB229-269齿面淬火HRC40~48。
5.板链：链板采用 45 # HRC36~42
Parts
1. The upper device equipped with orbit (double row), to prevent the chain of swing, non-return device, prevent hopper, rotary resistance material with lower chassis, discharge outlet is equipped with rubber to prevent material.
2. The middle section, part of the middle section is equipped with orbit (double row), in order to prevent the chain of swing, part of the middle section is equipped with the access door to repair.
3. The lower device: install a tensioning device, NE15 ~ NE50 USES the spring tension, tensioning NE100 ~ NE800 adopts heavy hammer box.
4. The sprocket wheel up and down the ZG310-570.Overall conditioning, the tooth surface quenching HRC40 HB229-269-48.
5. Plate chain: chain plate adopt 45 # HRC36 ~ 42
Parameters
| 型号 | 提升量 立方米/小时 | 物料最大块度 | ||||
|---|---|---|---|---|---|---|
| 占百分比 % | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE15 | 15 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 60 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |
