给料机

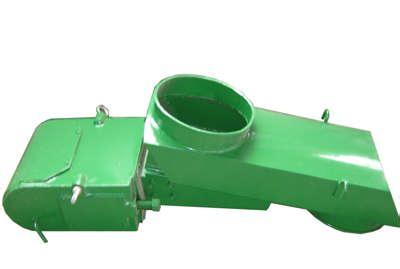

GZ电磁振动给料机

GZ系列电磁振动给料机产品概述

GZ系列电磁振动给料机广泛应用于矿山、冶金、煤炭、建材、化工、电力、粮食等行业，用于把块状、颗粒状及粉状物料从贮料仓或其它贮料设备中均匀连续或定量的给到受料设备中,是实行流水作业自动化的必备设备，分敞开型和封闭型两种。我公司还可根据要求生产电机振动给料机、往复式给料机，振动给料斗、及配套使用的输送机等振动设备。

Product overview
GZ series electromagnetic vibrating feeder is widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, food and other industries, used for the massive, granular and powdered materials from the storage bin or other storage device in the homogeneous continuous or quantitative to give in to the material equipment, is the sort of practice routine automation equipment, is divided into open and closed.We also can produce according to the motor vibration feeder, reciprocating feeder, vibration hopper, vibration and supporting the use of conveyor equipment.

GZ系列电磁振动给料机产品主要特点

该系列电磁振动给料机具有体积小、噪音低、重量轻、工作频率高、耗电少、可用于自动控制流程中实现生产流程自动化。无级调节给料量，可在额定电压、振幅条件下频繁启动和连续运转，安装维修方便。

Features
This series of electromagnetic vibration feeding machine has small volume, low noise, light weight, high working frequency, less power consumption, can be used for automatic control in the process to realize the automatic production process.Stepless adjustment of quantificationally, but under the condition of rated voltage, the amplitude of frequent starting and continuous operation, easy installation and maintenance.

电磁振动给料机使用现场

Working site

GZ系列电机振动给料机主要技术参数表

Parameter

GZ型电磁振动给料机外形尺寸

Boundary dimensions

上振型电磁给料机外形
封闭性电磁振动给料机外形

GZ型电磁振动给料机设备选型注意事项

Equipment selection considerations

1.主机

1.The host

类型	生产率计算容量（t/m3）	用途
基本型	1.6	无特殊要求的物料给料
上振型	1.6	配置空间不够的情况下安装使用，其它与基本型相同
封闭型	1.6	易碎颗粒、粉尘较大及挥发性物料给料
轻槽型	1.0	比重较小的轻物料给料
平槽型	安配煤条件给出	薄料层均匀给料
宽槽型	按配煤条件给出	主要用于选煤，亦可用于向筛分设备给料

实际容重大于或小于上述计算容重时，生产率按实际物料容重进行换算。
对于粒度小于1mm的物料，输送速度下降，含水量大于10%的潮湿粘性物不能正常输送。料层厚度超过规定上值，会妨碍正常给料，推荐料层厚度H=(1/3～1/4)槽高。
对有特殊要求、特殊规格的产品，我公司可专门设计制造。

The actual volume weight is greater than or less than the above to calculate the volume weight, productivity conversion according to the actual material density.
For material particle size less than 1 mm, conveying speed drops, moisture content is more than 10% of moisture goo can't normal delivery.Material thickness in excess of the prescribed value, will interfere with the normal feeding, recommend material thickness H = (1/3 ~ 1/4) slot is high.
To have special requirements, special specifications of products, our company can design and manufacture specialized.

2.配套控制箱：

2. The control box of form a complete set:

GZ系列电磁振动给料机配套控制箱具有手动控制和自动控制两种功能。自动控制信号为0～5V或～20mA。控制箱基本电路采用先进的移相触发器控制固态继电器作为主回路整流控制原件，可靠性好、寿命长，是一种新型控制电路。控制箱分为挂式与台式两种，订货时请注明。

GZ series electromagnetic vibration feeding machine control box with manual control and automatic control of two functions.Automatic control signal is 0 ~ 5 v or ~ 20 ma.Basic circuits of control box is the advanced phase shift trigger control of solid state relay as the main circuit of the original rectifier control, good reliability, long service life, is a new type of control circuit.Control box is divided into hanging and table two, please specify when ordering.

我公司可根据用户需要设计制造特殊型号规格的振动给料机。
我公司对所有技术资料、尺寸保留修改的权利，如实物与文中图案不符，应以实物为准

Our company can design and manufacture according to user needs special specifications of vibrating feeder.
My company for all technical data, reserve the right to modify the size, such as material object does not accord with the design, the material shall prevail
