粮食输送机

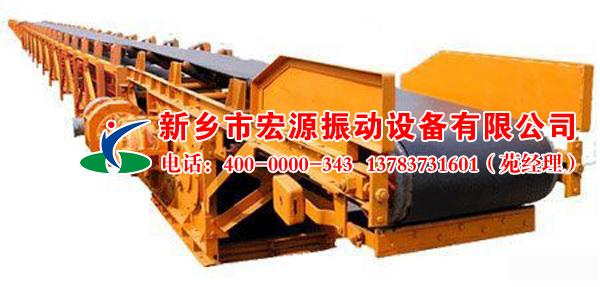

TD75型通用固定带式输送机

TD75/DTⅡ系列皮带输送机产品概述

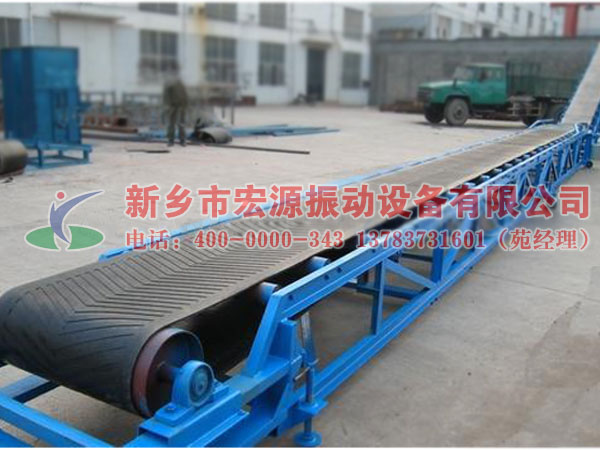

皮带输送机

    DTⅡ、TD75型皮带输送机由于输送量大,结构简单,维护方便,成本低,通用性强等优点,而被广泛地应用在冶金、矿山、煤炭、港口、交通、水电、化工等部门,进行装车、装船、转载或堆积各种常温状态的松散密度为500~2500kg/m3各种散状物料或成件物品.由单机或多机组合成运输系统来输送物料, 根据工艺要求可布置成水平或倾斜的形式,DTⅡ型皮带输送机除了可满足水平或倾斜输送要求外,还可采用带凸弧段、凹弧段与直线段组合的输送形式.输送机允许输送的物料块度取决于带宽、带速、槽角和倾角,也取决于大块物料出现的频率.该输送机适用的工作环境温度一般为-25~+40℃.我公司还生产轻型皮带输送机和移动式输送机。

Product overview

    DTⅡ, TD75 belt conveyor, bue to its simple structure, easy maintenance, low cost, high universality, etc, and is widely used in metallurgy, mining, coal, port, transportation, water and electricity, chemical industry and other departments, loading, shipping, reproduced or pile up all kinds of room temperature state of loose density of 500 ~ 2500 kg/m3 or loose materials for various items. By single or multiple synthetic transportation system for conveying material, according to the technological requirements can be decorated in the form of horizontal or inclined, DT Ⅱ type belt conveyor besides can meet the requirements of horizontal or inclined conveyor, also can be used with convex segmental arc, concave segmental arc and straight line combination form of transport. Conveyor allows transport blocks of materials depends on the bandwidth, belt speed, groove Angle and inclination Angle, also depends on the frequency of big materials. The conveyor is generally applied working environment temperature is 25 ~ + 40 ℃. Our company also produces light and portable conveyor belt conveyor.


     以上为某砂石生产流水线的动画演示,动画中多台皮带输送机与破碎机、振动筛等机械设备,组成一条完整的砂石生产流水线,大大提高工作效率。
     我公司可根据客户详情定制设计,或根据客户情况定制完整的生产流水线。欢迎致电:13783731601,咨询详情!
     The above as a demo for a sand production line, many sets of belt conveyor in animation and crusher, vibrating screen and other mechanical equipment,form a complete sand production line, improve the work efficiency greatly.
     We can custom design according to customer's details, or according to the complete production line of customers.Welcome calls: 13783731601, the  advisory details.

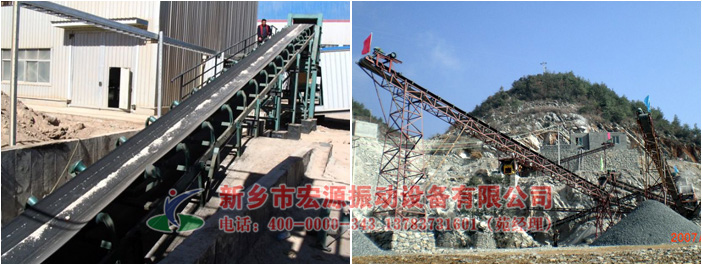

TD带式输送机现场图片

Working site

TD皮带输送机使用现场

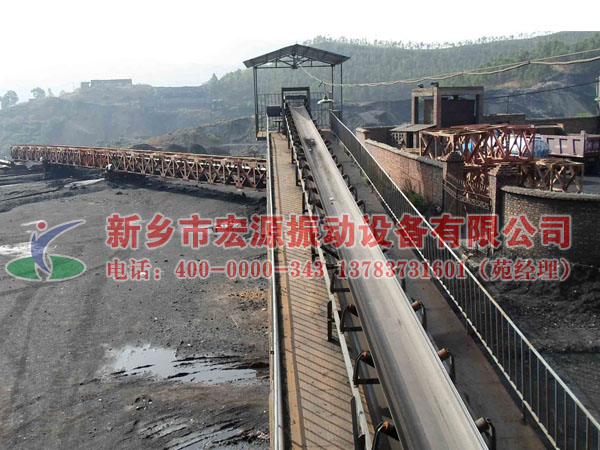

煤矿用皮带输送机
煤矿用皮带输送机

TD系列带式输送机基本结构

1.驱动部分:系由装置在型钢焊成的底座上的电动机-->高速联轴器-->减速器-->减速联轴器组成。根据要求:驱动装置设有左装和右装两种,另外本公司配有功率1.5KW-13KW,速度0.80、1.0、1.25的油冷式电动滚筒。
2.滚动部分:分传动滚筒和改向滚筒两大类。
3.托辊部分:分槽形、平行、调心和缓冲托辊等。
4.清扫部分:分弹簧清扫器和空段清扫器。
5.卸料部分:分固定式犁式卸料器和电动卸料器。
6.制动部分:有带式逆止器和滚柱逆止器两种。
7.附件:在罩壳、导料槽、漏斗等。

Structures
1. The drive part: by device in steel welded at the base of the motor - > high speed coupling-> reducer high speed>coupling.According to the requirement: drive operates in both left and right, in addition, our company is equipped with power 1.5 KW - 13 KW, speed of 0.80, 1.0, 1.25, oil cooled electric drum.
2. Rolling parts: transmission roller and redirection roller two kinds big.
3. The rollers parts: trough, parallel, self-aligning and buffer roller, etc.
4. Clean the parts: spring sweeper and empty section of the sweeper.
5. Unloading parts: points fixed plough tripper and electric discharger.
6. Brake parts: belt type non-return device and roller non-return device two kinds.
7. Accessories: in the casing, guide chute, hopper etc.

TD系列带式输送机工作特点

    DTⅡ、TD75型皮带式输送机按其支架结构有固定式的移动式两种:按输送带材料有胶带、塑料带和钢芯带之分。皮带输送机的工作环境温度一般在 -10oC--+40oC之间,要求物料温度不超过70oC;耐热橡胶带可输送120oC以下的高温物料。物料温度更高时不宜采用胶带输送机。当输送具有酸性碱性油类物质和有机溶剂等成分的物料时,需采用耐油、耐酸碱的橡胶带式塑料带。带式输送机的带宽可分为:500、650、800、1000、1200 和1400mm。用户可根据带式输送机的输送长度,物料的种类、容重、输送量、输送长度等诸因素通过计算确定输送机的布局以及所选用的胶带宽度、帆布层数和胶带厚度。

Work Features

DTⅡ,TD75 belt conveyor according to the framework has a fixed mobile two kinds: according to the conveyor belt material with adhesive tape, plastic zone and the points of steel core belt.General belt conveyor working environment temperature, between 40 oc to 10 oc - + requirements material temperature does not exceed 70 oc;Heat resistant rubber belt transporting materials in the high temperature under 120 oc.Material at higher temperature is unfavorable use belt conveyor.When conveying oily materials with acidic, alkaline and organic solvents, such as the composition of the material, the need to adopt can withstand oil, acid and alkali resistant rubber belt type plastic belt.The bandwidth of the belt conveyor can be divided into: 500, 650, 800, 650, 800 and 1400 mm.Users according to the conveying length of belt conveyor, the types of materials, such as bulk density, throughput, transmission length factors through the calculate and determine the layout of conveyor and chooses the tape width, canvas layer number and thickness of the tape.

TD系列带式输送机主要技术参数表

Parameters

承载托
辊形式
带? 速(m/s)

带? 宽? B(mm)

500 650 800 1000 1200 1400

输 送 量 Q(t/s)




0.8 78 131 - - - -
1.0 97 164 278 435 655 891
1.25 122 206 348 544 819 1115
1.6 156 264 445 696 1048 1427
2.0 191 323 546 853 1284 1748
2.5 232 391 661 1033 1556 2118
3.15 - - 824 1233 1858 2528
4.0 - - - - 2202 2996




0.8 41 67 118 - - -
1.0 52 88 147 230 345 460
1.25 66 110 184 288 432 588
1.6 84 142 236 368 553 753
2.0 103 174 289 451 677 922
2.5 125 211 350 546 821 111

注:1、输送能力Qv值系按水平运输,动堆积角θ为20°,托辊槽角λ为30°时计算的。
2、带速(4.5)、(5.6)m/s为非标准值,一般不推荐使用。

TD系列皮带式输送机布置有下面几中基本形式:
1.水平输送机 2.倾斜输送机 3.带凸弧曲形段输送机 4.带凹弧曲形段输送机 5.带凹弧及凸弧曲形段输送机。

Note: 1, the transmission capacity Qv value according to the level of transportation, dynamic accumulation Angle theta is 20 °, 30 ° roller groove Angle lambda for calculation.
2, belt speed (4.5) and (5.6) m/s as a standard, is generally not recommended.
TD series in the arrangement of belt conveyor has the following a few basic form:
Horizontal conveyor 2. Tilt conveyor 3. Belt convex arc curvy paragraph 4. Belt concave arc curvy paragraph 5. Belt arc concave and convex arc curvy.

传动型式与传递功率的关系

Transmission type and transfer power relations

传动型式

功率范围(kw)

备注

弹性联轴器直接传动

2.2~37

功率≤200kw时电压为380V
功率≥220kw时电压为6000V


Y系列电机加液力偶合器

45~315

电动滚筒直接传动

2.2~55

绕线式电机 220~800

备注:除电动滚筒直接传动外,其余传动型式均配相应的减速器。

Remark: in addition to the electric cylinder direct drive, the rest of the driving type match with corresponding gear reducer.
