旋振筛产品概述

    三次元振动筛分过滤机又称旋振筛，振动筛，震动筛，圆振筛，过滤机。我厂专业生产三次元振动筛分过滤机（旋振筛）和各种振动设备，,产品设计精巧、功能卓越、品质优秀、用途广泛。
    1、体积小、重量轻、移动方便、出料口方向可任意调整，粗、细料自动排出，可自动化或人工作业。
    2、筛分精度高、效率高，任何粉、粒、粘液类均可使用。
    3、筛网不阻塞、粉末不飞扬、筛分最细可达500目（28微米）过滤最细可达5微米。
    4、独特网架设计（子母式）、筛网使用长久、换网方便、仅需3―5分钟、操作简单、清洗方便。
    5、无机械动作、保养简易、可单层或多层使用、与物料接触部位为用不锈钢制作（医药用除外）。

Product Overview
  Three dimensional vibrating screen filter is also called rotary vibration sieve, vibrating screen, vibration sieve, round vibration sieve, filter.Our factory specializing in the production of three dimensional vibrating screen (rotary vibration sieve) and a variety of vibration equipment, and product design is exquisite, functional excellence,excellent quality,wide range of USES.1, small volume, light weight, mobile convenience, discharging mouth direction can be arbitrary adjustment, coarse and fine material automatic discharging, automatic or manual operation.
2, screening of high precision, high efficiency and is applicable to any powder, granule, mucus.
3, no screen blocking, powder does not float, screening the most fine of up to 500 mesh (28 micron) up to 5 micron filter the finest.
4, unique grid design (child) of type of mother, the screen use for a long time, , convenient to replace the mesh only 3 to 5 minutes, simple operation, easy to clean.
5, no mechanical action and maintenance simple and easy, can be used single or multi-layer, and material contact part is made of stainless steel (except for medical use).

碳钢材质旋振筛

Cabon steeel rotary vibrating screen

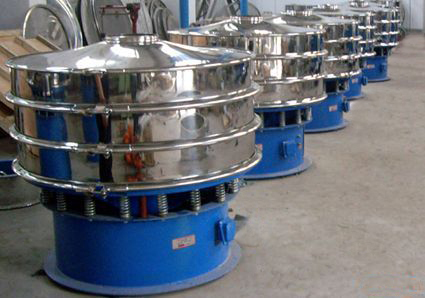

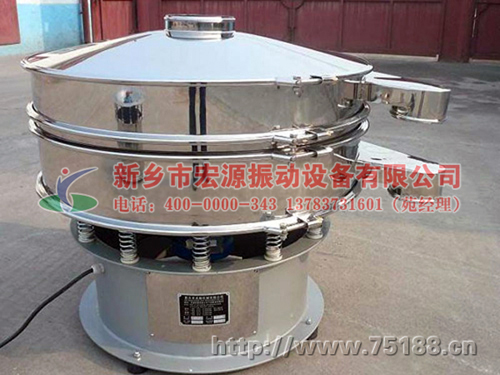

全不锈钢旋振筛

Stainless steel rotary vibrating screen

旋振筛主要技术参数

Parameters

旋振筛主要应用行业

    旋振筛应用行业：食品行业专用旋振筛、化工行业专用旋振筛、制药行业专用旋振筛、陶瓷行业专用旋振筛、磨料磨具行业专用旋振筛、冶金行业专用旋振筛等等：
食 品 行 业：面粉、奶粉、淀粉、鱼粉、米粉、维生素、调味品、糊精、饮料、果汁、砂糖、酱油、凤梨汁、酵母液等
化 工 行 业：油漆、树脂粉、PVC树脂粉粒、柠檬酸、聚乙烯粉、洗衣粉等
制 药 行 业：医药中间体、医用辅料、中药粉、中药液、西药粉、西药液等
陶瓷磨料冶金行业：铝银浆、泥浆、高岭土、石英砂、氧化铝、人造黑铝、石墨、碳化硅、喷雾土粒、金刚砂、铁粉、二氧化钛、电解铜粉等。

Applications
    Rotary vibration screen application industries: food industry dedicated special vibration sieve spin vibration sieve, chemical industry, pharmaceutical industry special vibration sieve, ceramic industry is special vibration grinding tools for spin vibration sieve, sieve, metallurgical industry special vibration sieve, etc. :Food industry: flour, milk powder, starch, fish meal, rice noodles, vitamin, spices, dextrin, beverage, fruit juice, sugar, soy sauce, pineapple juice, fermented, and so on
Chemical industry: PVC tree powder paint, powder, granule, citric acid, polyethylene powder, washing powder, etc
Pharmaceutical industry: pharmaceutical intermediates, medical materials, powder, liquid, powder, western medicine, etc
Ceramic abrasive metallurgical industry: aluminum silver paste, slurry, kaolin, quartz, alumina, aluminum artificial black, graphite, silicon carbide, spray soil particles, emery, iron powder, titanium dioxide, electrolytic copper powder, etc.

旋振筛动画演示

Animation Shown

旋振筛一般结构图

Structures

旋振筛设备振动力的调整

    通过改变振动电机的上下2块偏心块的夹角和质量，振动电机即可带动设备产生不同大小的振动力，从而改变水平或垂直方向的振动幅度，进而改变筛分的流量和效率。下面表述几个角度调整的一般特征。

Vibratory force adjustment
   By changing the vibration motor fluctuation two eccentric blocks angle and quality,vibration motor can drive the device to produce different sizes of vibration force, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.

0度 适用于对原料进 行大量的粗筛分	35度 适用于大多数原 料的筛分	60度 适用于精细原料 的精筛分	90度 特殊用途

旋振筛更换筛网方法

Ways of changing the mesh
