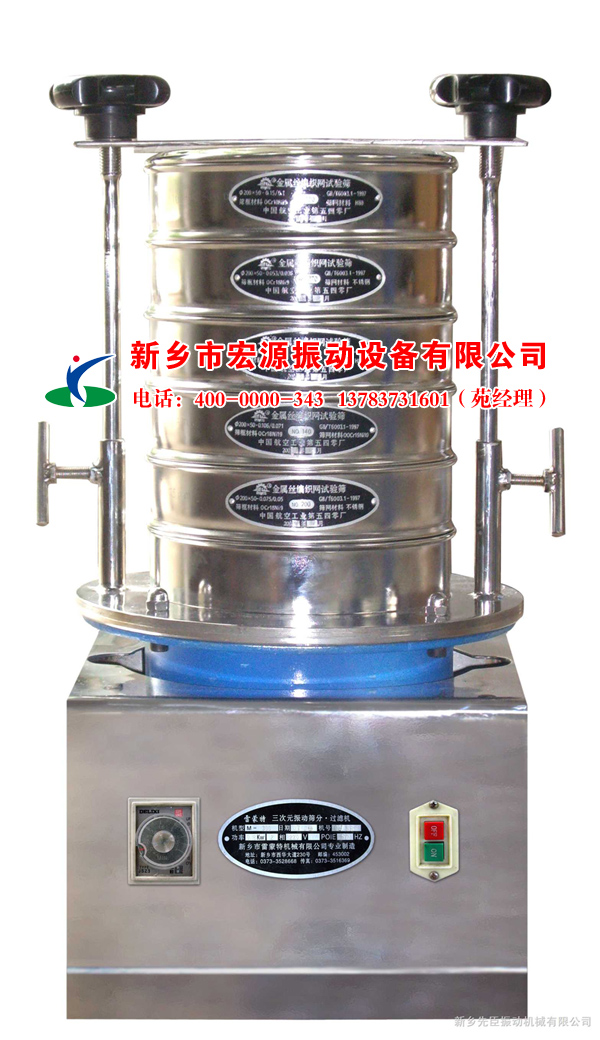

BZS-200检验筛|标准检验筛产品概述：

检验筛|标准检验筛|标准分析筛是集粉粒分级、液体过滤为一体的标准分析筛，分析效率高、范围广、可同时分出8组样品；配合使用电子计时器，同种物料设定同等分析时间，保证最低的误差，准确判断在线产品质量；其噪音低、体积小；有0.045-2.5MM粒度的分样产品，适应多规格标准筛。标准检验筛广泛用于冶金、粉粒、化工、医药、建材、地质、国防等部门的科研生产、试验室、质检室中，对颗粒状、粉状物料的粒度结构、液体类固体物含量及杂物量的精确筛分、过滤、检测。该产品噪音低、筛体标准，筛、滤样品精度高。

BZS - 200 standard test screen is a vibration motor as vibration source, vibration motor drive the vibration screen machine base, through the base to put at the base of the standard test on the screen, to make them less than the test screen escapes hole material particles test screen into the lower level, so the screening, each layer test only stay in the same particle size of materials.Achieve the separation of different particle size and the grain size composition of the material were determined.In the test screen material can effectively screening and classification, filtering purposes.Also be test screen, screen analysis, sample points screen, etc.
BZS-200检验分析筛广泛应用于实验室、质检室等检验部门进行颗粒、粉类物料粒度分布测定，产品杂质含量，液体固形物含量的测定分析。该产品结构紧凑、噪音低、效率高、精度准确等特点突出，采用新型动力发生器，产生多元高频振动，对物料进行高效筛选、测定。同时可根据不同物料通过电子延时器实现不同的工作时间，把检验误差降到最低程度，保证样品分析数据的一致性，对产品质量做出精确判断。

BZS - 200 test analysis screen is widely used in laboratory, quality inspection room inspection department for granular, powder materials such as particle size distribution measurement, product content of impurities, the determination of liquid solid content analysis.The product structure is compact, low noise, high efficiency, precision accuracy and other characteristics, USES the new type of power generator, multivariate high-frequency vibration of efficient screening and determination of the supplies.At the same time can be achieved through electronic delay timer according to different materials of different working time, reduce the test error to a minimum, ensure the consistency of the data samples analysis, make accurate judgment the quality of product.

检验筛|标准检验筛产品特点：

    1、体积小、重量轻、移动方便。
    2、筛分精度高、可筛分至325目。
    3、噪音低。
    4、结构多样，分碳钢喷塑和不锈钢两种，用户可选择。
    5、一次性投料不大于200g。

Features

1, small volume, light weight, easy to move.
2, screening of high precision, can screen to 325 mesh.
3, low noise.
4, structure, diversity, carbon coating and stainless steel two kinds, the user can choose.
5, disposable feeding is not more than 200 g.

检验筛|标准检验筛主要应用行业：

检验筛|标准检验筛广泛用于冶金、粉粒、化工、医药、建材、地质、国防等部门的科研生产、试验室、质检室、高等院校实验室等。

Applications

Inspection standard screen | screen is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, defense and other departments of scientific research production, laboratory and quality inspection room, laboratory in colleges and universities, etc.

BZS-200检验筛|标准检验筛主要技术参数表：

Parameters

序号	名称		单位	数据
1	标准筛体		层	8
2	筛体直径		mm	φ200φ100φ75
3	筛分粒度		mm	0.038-3
4	噪音		dB	≤50
5	投料量（一次性）		g	≤200
6	振幅		mm	≤5
7	电机	电压	V	220
		转速	r/min	1420
		功率	KW	0.125
8	外形尺寸		mm	360×300×736
9	整机质量		Kg	25

检验筛|标准检验筛使用方法：

    1、根据被检物料及相应的标准来确定要选用的标准筛具。
    2、把标准筛具按孔径从大到小,从上到下依次叠放到托盘座上,由凹槽或定位螺丝对标准筛具进行定位。
    3、把被检物料放入最上端的标准筛具里，并盖上上盖，然后用套在丝柱上的筛分头压住标准筛具，旋紧丝柱上的螺母压紧。(注意：两侧要用力一致,然后用锁定螺丝锁紧。)
    4、把定时器开关放在需要的位置，然后打开电源开关,检验筛即开始工作。
    5、标准检验筛工作停止后,旋开丝柱上的螺母，移开筛分头，小心取走标准筛具。
    6、切断电源。

Method of Ways

1, according to the checked the material and the corresponding standard to determine the standard screen to choose.
2, the standard screen according to the size from big to small, from top to bottom in turn stacked on the tray, by a groove or positioning screw fixing the standard screen with.
3, put checked material in the top with the standard screen, and cover up and cover, and then use set in silk screen separately on the column pressure standard screen, wire screw the nut on the column pressure.(note: to push on both sides is consistent, then use locking screw lock.)
4, put the timer switch to position, and then open the power switch, check screen which begin to work.
5, standard test screen work stopped, unscrew the nut on the silk pole, remove the screen separately, carefully take standard screen.
6, cut off power supply.

检验筛|标准检验筛注意事项：
    1、标准分析筛要求水平放置。
    2、确认电源和要求相符,并确保接地。
    3、振动部分不能与其他物体接触。
    4、必须由凹槽或定位螺丝对标准筛具进行定位。

Attentions

1, analysis of standard sieve requirements in horizontal.
2, confirm the power supply accord with demand, and ensure the grounding.
3, vibration part can't contact with other objects.
4, It must by screw the positioning of the grooves or standard screen to locate.

常见故障及解决方案：

Common failures and solutions:

状态	检验项目	对策
电机运转不良	确认电源	确认电源,打开卡关
	接触不良	检查线路
	单相运转	更换电机
异状声音	螺母未压紧	螺母压紧
	标准筛具未定位	标准筛具定位
	弹簧断裂	更换弹簧
	与其他物体接触	与其他物体隔离
	固定电机螺丝松脱	锁紧螺丝

备注：检验筛|标准检验筛筛格：

Notes:Inspection standard screen | screen mesh

Φ200标准筛根据筛面材料分为金属丝编织网标准筛和金属穿孔板标准筛。

Φ 200 standard screen according to the screen surface materials can be divided into metal wire woven mesh sieve and metallic perforated plate standard screen.

金属丝编织网试验筛采用国家标准GB/T6003.1-1997生产。其网孔基本尺寸为2.36mm-0.038mm，符合国际标准ISO3310-1：1990　R20/3，R20，R40/3系列，筛网材质为黄铜、锡青铜、不锈钢。
　金属穿孔板标准筛采用国家标准GB/T6003.2-1997，符合国际标准ISO3310-2：1990　R20/3、R20、R40/3系列，筛网材质为优质不锈钢，并采用数控冲压穿孔而成。

Metal wire woven mesh test sieve the national standard GB/T6003.1-1997 production.The basic mesh size is 2.36 mm to 0.038 mm, in line with international standards ISO3310 - '90 the R20/3, the R20, R40/3 series, screen mesh is made of brass, tin bronze, stainless steel.
Perforated metal plate standard screen the national standard GB/T6003.2-1997, in line with international standards ISO3310 R20/3, 90 - the children of the R20, R40/3 series, screen mesh material for high quality stainless steel, and adopts CNC punching hole.

Φ200标准筛筛框、筛盖、筛底选用优质不锈钢精制而成。并借鉴进口标准筛的优点，在下筛框增加了密封胶圈，较好地解决了粉料漏失现象，减少了飞溅粉料溅入振筛机缝隙内磨损齿轮的机会，尽可能的延长振筛机的使用寿命。同时还能减小噪音，一定程度地改善了生产现场噪音条件。

Φ 200 standard screen box, screen cover, the bottom of the screen select high-quality stainless steel.And draw lessons from the advantages of imported standard screen, the screen box increased the o-ring seal, to better solve the phenomenon of powder leakage and reduce the splash powder from entering the gap inside the opportunity to wear gear vibration sieve machine, prolong the service life of the vibration screen machine as possible.At the same time also can reduce the noise, to a certain extent to improve the production field noise conditions.

标准筛目数与网孔对照表：

Table
目数              网孔尺寸                                            目数          网孔尺寸
8                2360μm                                              50             300μm
10                2000μm                                             60             250μm
12                1700μm                                              80             180μm
14                1400μm                                             100             150μm
16                1180μm                                             120             125μm
18                1000μm                                             140             106μm
20                 850μm                                             170              90μm
25                 710μm                                             200              75μm
30                 600μm                                             230              63μm
35                 500μm                                             270              53μm
40                 425μm                                             325              45μm
45                 355μm                                             400              38μm

工作条件

供电电源：交流220V
The working conditions
Power:Alternating current 220V

技术要求及配置

主要功能

标准检验筛是集粉粒分级、液体过滤为一体的标准检验筛；适用于实验室，质检室对颗粒、粉类进行粒度结构精确分析，液体类固形物含量及杂物量的测试分析。
Requirements and configuration
Mainly Function
Standard test screen is a concentration of liquid filtration powder grading, as one of the standard test screen;Apply to the laboratory, quality control room for granule, powder, granular structure precise analysis, liquid solid content and an analysis of the test of the clutter.

技术指标

★层数：2~5层；

★筛分粒度：0.045~2.5mm；

频率：1420次/min；

功率0.125kw；

★筛面有效直径：φ200mm
Technology parameter
★layer number:2-5
★granularity:0.045-2.5mm;
★Frequency:1420times/min
★Power:0.125KW
★surface diameter:φ200mm

特点
Characteristic

具有噪音低、效率高、精度高等特点。产生多元高频振动，高效筛滤样品；标准筛体，确保样品分析高精度；电子延时器，可根据需要设定同种物料同等筛分时间、保证样品的分析数据统一性，把检验误差降到最低程度，以便对产品质量做出准确判断。

标准检验筛筛框采用SUS304（0Cr18ni9）不锈钢拉伸抛光而成,壁厚0.6毫米,表面光可鉴人，整体成型坚固耐用,没有磁性, 标准检验筛筛网与标准检验筛筛框通过锡焊固定,不会松弛。能耐300度以下高温。
It has a advantage of Low noise, high efficiency, high precision, etc.Multivariate high-frequency vibration of efficient screen samples;Standard screen, make sure the sample analysis and high precision;Electronic delay device, can according to need to set the same material as screening time, ensure the analysis of the sample data of unity, the testing error to a minimum level, in order to make accurate judgment the quality of product.
Standard test screen flame adopts SUS304 (0 cr18ni9) stretch polishing stainless steel, thickness is 0.6 mm, exterior smooth gleaming, integral forming strong and durable, no magnetic, standard inspection sieve sieve and standard sieve sieve box fixed by soldering, not flabby.Can withstand temperatures up to 300 degrees.

配置
Configuration

标配

Standard
