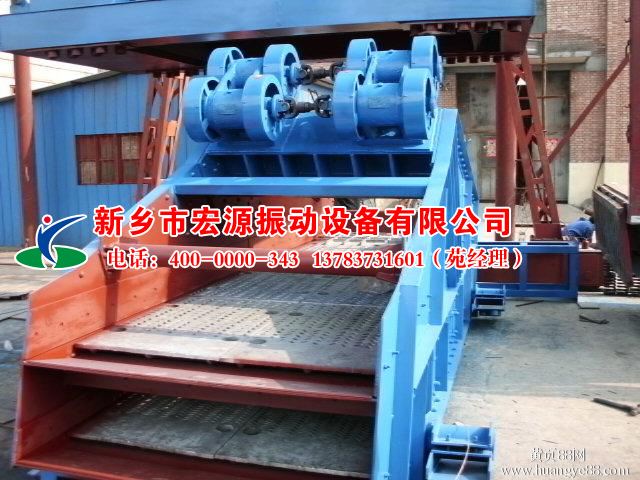

KZS系列矿用振动筛产品概述

    KZS系列矿用振动筛采用振动电机激振、橡胶弹簧减振以及先进的自同步振动原理，具有寿命长、噪音低、筛分效率高、体积小、重量轻、耗能少、结构简单、造型美观等特点，适用于烧结矿、自然矿、焦炭及其它颗粒物料的高能筛分。

Product overview
   KZS series mining vibrating screen uses the vibration motor excitation, rubber spring damping, and advanced the synchronous vibration principle, has a long service life, low noise, high screening efficiency, small volume, light weight, less energy consumption, characteristics such as simple structure, beautiful modelling, suitable for sinter, natural ore, coke and other high-energy screening of granular materials.

KZS系列矿用振动筛使用范围

    KZS系列矿用振动筛广泛应用于矿山、煤炭、冶金、建材、耐火材料、轻工、粮食等各行业对大块物料及中、小颗粒物料的分级作业。

Applications
   KZS series mining vibrating screen is widely used in mining, coal, metallurgy, building materials, refractory materials, light industry, food and other industries, small particles in the bulk material and material classification work.

KZS系列矿用振动筛型号含义

Types of meaning

2 KZS P □ □
┬ ┬ ┬ ┬ ┬
│ │ │ │ │
│ │ │ │ └──────────　筛面长度dm
│ │ │ └───────────-　筛面宽度dm
│ │ └─────────────　普通电机
│ └──────────────-　矿用振动筛
└────────────────　双层筛面(单层不写)

KZS系列矿用振动筛技术参数表　

Parameters

型号	筛分能力		振幅 mm	筛面倾角 。	电机型号	外形尺寸 （长×宽×高）mm
	入料粒度 mm	生产能力t/h
2KZS6-15	≤30	8	5―7	0°-15°	YZS10-6	2035×1070×1430
2KZS9-18	≤50	15	5―7	0°-15°	YZS20-6	2200×1420×1660
2KZS12-24	≤100	20	5―7	0°-15°	YZS30-6	2793×1800×1860
2KZS12-30	≤120	25	5―7	0°-15°	YZS50-6	3250×1800×2290
2KZS15-30	≤150	35	5―7	0°-15°	YZS75-6	3400×2220×2220
2KZS15-36	≤150	50	5―7	0°-15°	YZS75-6	4050×2160×2210

KZS系列矿用振动筛外形尺寸表

Boundary dimensions

型号	A	A1	B	C	L	L1	H	H1	E	φD	a°
2KZS6-15	1500	1500	600	1040	1300	1050	1130	200	450	17	7°
2KZS9-18	1800	1900	900	1384	1600	1100	1340	230	600	17	10°
2KZS12-24	2400	2300	1200	1756	2100	1500	1550	400	800	21	10°
2KZS12-30	3000	2890	1200	1756	2690	1200	2040	480	800	21	15°
2KZS15-30	3000	2890	1500	2160	2540	1650	1820	400	900	25	10°
2KZS15-36	3600	3200	1500	2160	2700	2420	1930	290	1000	25	10°

订货说明：
    选型及定货时应注明筛网层数、筛面倾角、筛网结构（棒条、编织、冲孔）、网孔规格、处理量、物料名称、入料粒度、出口方向、材质、电机侧装或上装等，我公司可根据客户要求定做各种型号的矿用振动筛。

Order details:
Selection and order should indicate the layer number of screen mesh, screen mesh sieve surface inclination Angle, structure (bar, weaving, punching), mesh size, capacity, material name, the grain-size, export orientation, material qualitative, motor side or tops, etc., our company can be customized of various types  mining vibrating screen according to customer requirements.
